Quick Release Bottom Pin for Harken Swivel Cleat
Regular price
£19.00
Sale price
£19.00
Regular price
Save 0
Sold out
Tax included.
Out of stock
Earn [points_amount] when you buy this item.
If currently in stock:
-
Please note that shipping will resume on 2nd January 2025.

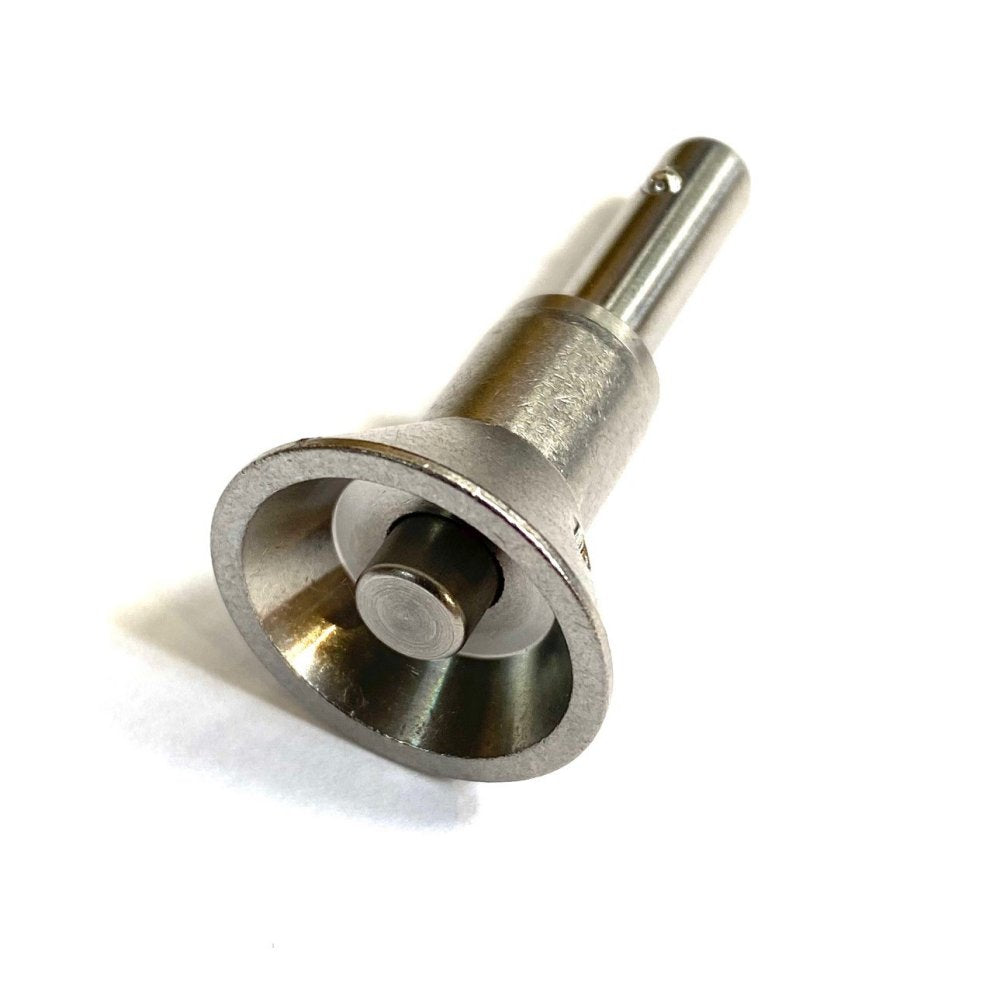

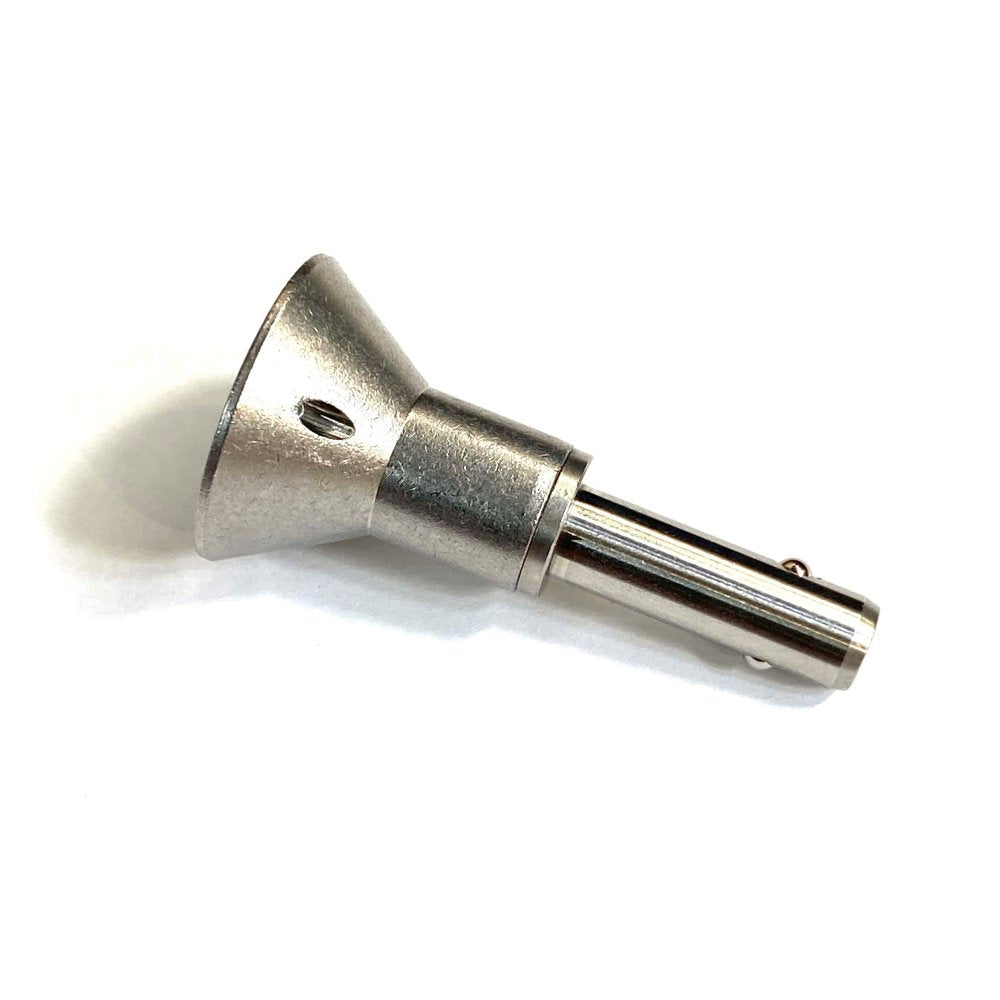

This Rooster quick release pin is for your ILCA/Laser Harken vang/kicker XD system. Easy and quick, releasing - Simply push the button, the pin releases and pull it out. Attach to your Harken vang/kicker XD system to the bottom mast section. A small hole is provided on the side of the tapered handle to allow, as an option - a split ring or small twine cord to be attached - to assist removal.
NOTE: Pin diameter is 6.3mm (1/4")
Tested with the official Laser Harken XD kit fitting - a perfect fit. Class legal.
Materials:
Body - 17-4 PH Grade Stainless Steel
Spindle, Button and Handle (Dia. 20.7 mm) - 303 Grade Stainless Steel
Spring - 304 Grade Stainless Steel
Rooster Quick Release (Kicker Bottom Pin) Properties
| Weight | 19 grams |
|---|---|
| Dim A | 6.3 mm |
| Dim B | 7.3 mm |
| Dim C | 6.5 mm |
| Dim E | 10.1 mm |
| Dim H | 21.1 mm |
| Dim H1 | 11.3 mm |
| Dim L Grip length | 13 mm |
Learn more about caring for your gear on our product care page here
